When it comes to securing a vessel—whether it's a small yacht, a large commercial ship, or a floating marine installation—choosing the right anchoring system is critical. At the heart of every anchoring system lies the key decision: Anchor Chains or ropes? Each option brings its own strengths, considerations, and unique challenges. Delving into the world of anchor chains uncovers a diverse range of factors influencing safety, convenience, performance, and longevity at sea. This comprehensive guide will explore the differences between anchor chains and ropes, analyze their advantages and disadvantages, and help you determine which is better for your anchoring needs.

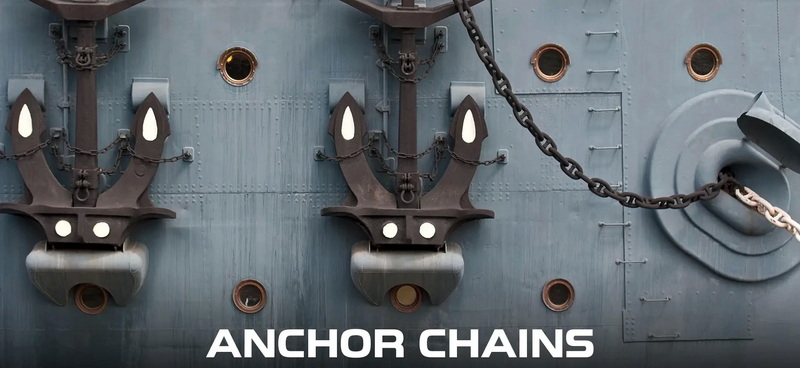

Anchor chains, often made from robust steel or special alloys, form a critical component of marine anchoring systems. Designed to connect the vessel's anchor to the hull, anchor chains offer the strength and flexibility required for safe, secure mooring—even in the harshest maritime environments. Modern anchor chains may also include galvanized or high-strength coatings to enhance corrosion resistance and extend operational life.
Anchor chains come in several types, each suited for different applications. Stud-link chains feature a bar (stud) across the center of each link, providing enhanced strength and helping prevent deformation. This stud also reduces the likelihood of the chain links tangling together, which is particularly important for large vessels deploying long lengths of chain. Studless chains, on the other hand, are lighter and more flexible but generally less strong. They are commonly used for smaller boats or temporary moorings.
Another important classification is short link versus long link chains. Short link chains offer higher strength and better load distribution, suitable for heavy-duty applications. Long link chains provide easier handling and can be lighter for the same overall length, making them popular in mooring buoys and lighter anchoring needs.
Material selection plays a pivotal role in the performance and life span of anchor chains. Galvanized steel is the most common choice, offering a good balance of strength, weight, and corrosion resistance due to its protective zinc coating. Stainless steel anchor chains provide superior corrosion resistance and are especially valued when dealing with saltwater or highly corrosive environments, although they come at a premium price. High-tensile alloy steel is another option favored when maximum strength per diameter is required, such as for deepwater anchoring or when minimizing the chain's weight on the vessel is critical.
Anchor chains offer several benefits that make them the preferred choice for many vessels:
- Superior Holding Power: The weight of the chain ensures the anchor is pulled horizontally across the seabed, allowing it to dig in efficiently.
- Abrasion Resistance: Steel chains can endure rough seabeds composed of rocks, shells, or coral, which can quickly damage ropes.
- Optimal Anchor Angle: The heavy chain produces a catenary curve that absorbs shock loads and reduces the vertical pull on the anchor, helping it maintain grip.
- Longevity: With appropriate maintenance, chains can last many years, making them cost-effective over time despite higher initial cost.
Ropes—also called anchor lines or rodes—are an alternative to steel chains for connecting the anchor to the vessel. Often made from synthetic fibers such as nylon, polyester, or polypropylene, ropes offer advantages in weight and handling, making them popular with smaller boats or recreational vessels.
Each type of synthetic rope comes with its own characteristics:
- Nylon Ropes: Known for their excellent elasticity, nylon ropes can absorb sudden shock loads, for instance, from wave action or gusts of wind.
- Polyester Ropes: These ropes offer superior UV resistance and more stiffness than nylon, with less stretch.
- Polypropylene Ropes: Light and buoyant, polypropylene ropes float on water, which can be advantageous in certain anchoring setups but they are less durable under abrasive conditions.
- Lightweight: Makes handling and storage easier, especially on smaller vessels.
- Flexibility: Ropes are easier to coil and stow compared to heavy chains and generally do not require specialized equipment.
- Cost Effective Upfront: Typically less expensive initially than steel chains.
- Less Wear on Equipment: Ropes reduce wear and tear on windlasses and fairleads due to their flexibility.
However, ropes have shorter lifespans and are more vulnerable to UV damage, chafing, and abrasion on rocky seabeds.
The key factors where anchor chains and ropes differ highlight the trade-offs between strength, durability, cost, and handling.
- Strength: Anchor chains provide superior tensile strength to withstand extreme loads; synthetic ropes have lower maximum strength but higher elasticity.
- Weight: Chains are heavy, which aids anchoring but can be cumbersome to handle and requires mechanical winches; ropes are much lighter and easier to manipulate manually.
- Durability: Steel chains are highly durable, resisting chafe and cuts; ropes wear out faster especially when dragged over rough seabeds.
- Shock Absorption: Ropes absorb shocks through their elasticity; chains rely on their weight and catenary curve.
- Corrosion and Maintenance: Chains require protection from corrosion but can last decades with care; ropes degrade from UV exposure and wear, requiring regular replacement.
- Handling: Chains often require a windlass and more robust deck hardware; ropes can generally be managed by hand on smaller vessels.
The heavier and larger the vessel, the more critical it becomes to use anchor chains. Heavy chains help keep the anchor positioned correctly on the seabed and prevent dragging in strong currents or rough weather. Smaller boats with light anchors can often rely on ropes, or a combination where a short chain is attached to the anchor (called a chain leader) to enhance abrasion resistance.
The condition of the seabed plays a significant role in deciding the anchoring system:
- Rocky or Coral Bottoms: Anchor chains perform better since they resist cutting and abrasion that can quickly damage ropes.
- Sandy or Muddy Bottoms: Both ropes and chains may hold well, but chains' weight helps maintain contact and optimal anchor angle.
- Deepwater Anchoring: Chains provide the necessary weight and catenary effect to absorb shock loads from waves and wind in deeper water.
- Vessels with limited storage space or no windlass typically prefer ropes because of their easier handling and stowing.
- Large chains require considerable space in chain lockers and powerful equipment to raise and lower.
- Ropes have lower initial costs but may require more frequent replacement.
- Chains, despite their higher upfront cost, provide long-term reliability and lower replacement frequency if properly maintained.
In deep water, anchor chains excel due to their weight and catenary curve. The heavy chain hangs in a curved form between the anchor on the seabed and the vessel, effectively reducing the upward pull and allowing the anchor to hold firmly. This curve also acts like a shock absorber, minimizing strain from wave, tide, and wind-induced movements, which is critical for commercial and offshore vessels where safety is paramount.
Synthetic ropes shine in shallow water where the demands on holding power and abrasion resistance are lower. Their elasticity provides excellent shock absorption, and their light weight makes deploying and retrieving the anchor simpler. However, care must be taken to protect the rope from abrasion, and a chain leader can enhance durability.

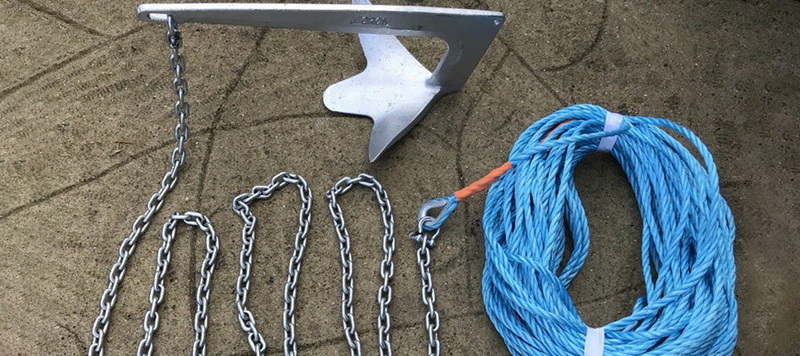

Many boaters combine both: a short length of chain attached directly to the anchor, followed by a synthetic rope for the remainder of the rode. This hybrid approach provides abrasion resistance near the anchor and light weight and ease of handling for the upper portions. It is a popular solution for recreational boats requiring flexibility and safety.
Anchor chains require regular inspections and cleaning to maintain their integrity:
- Thorough rinsing with fresh water after exposure to saltwater prevents salt crystallization and corrosion.
- Regular inspections for rust, bending, cracking, or deformation are essential.
- Periodic lubrication and application of marine-grade protective coatings can help extend service life.
- Pay special attention to the chain at connection points such as the swivel and anchor shackle.
With proper maintenance, ropes can give reliable service:
- Rinse ropes with freshwater frequently to remove salt, sand, and dirt that degrade fibers.
- Store ropes dry and out of direct sunlight to minimize UV damage and mildew.
- Inspect for frays, tears, or stiff spots indicative of internal damage.
- Replace ropes as soon as any significant wear or damage appears.
Handling anchor chains demands caution:
- The heavy links can pinch fingers or cause injury; always wear protective gloves.
- Chains should be properly secured in chain lockers or with safety latches to prevent accidental release.
- Ensure deck and windlass equipment is rated to handle the weight of the chain.
While lighter, ropes have their own hazards:
- Use chafe guards at contact points to avoid rapid wear.
- Ensure knots and splices connecting the rope to the anchor or chain are professionally done to handle expected loads.
- Beware of the snapping hazard from stretched synthetic ropes under heavy load; they can recoil with significant force.
- Select the proper chain grade and diameter based on vessel size and anchor weight.
- Windlasses must be compatible with the chain size and type used.
- Attach a swivel between the anchor and chain to prevent twisting.
- Regularly coil the chain in the locker to avoid tangles.
- Favor double-braid or three-strand ropes specifically designed for marine use.
- Use a short chain leader segment at the anchor end for protection against abrasion.
- Store rope in a dry, ventilated locker away from sunlight.
- Replace rope before significant wear threatens safety.
Commercial ships depend exclusively on heavy stud-link anchor chains. Their weight and strength provide the essential holding power for enormous vessels operating in a variety of harsh marine conditions.
Smaller boats often adopt mixed rode systems—combining anchor chain with synthetic rope. These setups strike a balance, improving abrasion resistance while remaining easy to manage.
Floating platforms, navigation buoys, and scientific equipment rely on heavy-duty anchor chains for stability and long-term mooring integrity in challenging environments.
Both anchor chains and ropes have indispensable roles in maritime anchoring. Anchor chains offer unmatched strength, durability, and reliable holding power for large vessels, commercial ships, and offshore installations. Ropes, by contrast, bring flexibility, lightness, and ease of handling that suit smaller craft and calm water conditions. Often, the most effective anchoring system combines both: a chain leader protects the more vulnerable rope, delivering the best of both worlds.
Understanding the specific needs of your vessel, the prevailing water and seabed conditions, and your maintenance capabilities will guide the optimal choice. Properly selected, installed, and maintained anchoring equipment enhances the safety, security, and enjoyment of every boating experience.
For most vessels, a minimum anchor chain length equal to the length of the boat is recommended. In offshore or deepwater scenarios, the chain length should ideally be 5 to 7 times the water depth to maintain adequate catenary effect for holding.
Synthetic ropes can serve as the primary rode on smaller boats in lighter anchoring conditions but should be paired with a short chain leader to prevent abrasion damage and ensure effective holding.
Regular rinsing with fresh water, application of protective coatings, and routine inspections for corrosion and wear are essential for rust prevention and prolonging chain life.
While small anchor chains might be hand-operated, a windlass is highly recommended or essential for heavier chains and larger vessels due to ease of deployment, retrieval, and safety.
Galvanized steel chains provide a good balance of strength, corrosion resistance, and cost effectiveness, making them the most common choice. Stainless steel chains offer superior corrosion resistance and longevity at higher cost, ideal for marine environments with high salt exposure.
