Boat Anchor Chain Grade 2

Material: CM490, CM690
Technology: Flash Butt Welding
Use: Marine hardware fittings for ship, boat and vessel
Size: ø16mm – ø68mm
Surface: Black bituminous painting, HDG, No painting
Consist of: Common link, Enlarge link, End link
Availability:

anchorchain     anchor chain


Product Details

Material: CM490, CM690

Technology: Flash Butt Welding

Use: Marine hardware fittings for ship, boat and vessel

Size: ø16mm – ø68mm

Surface: Black bituminous painting, HDG, No painting

Consist of: Common link, Enlarge link, End link

Accessories: Kenter shackle, Anchor shackle(End shackle, D shackle), Swivel

Payment: T/T; L/C at sight

Delivery: 7-35 days after order confirmed

Port: WUHAN/SHANGHAI PORT, CHINA

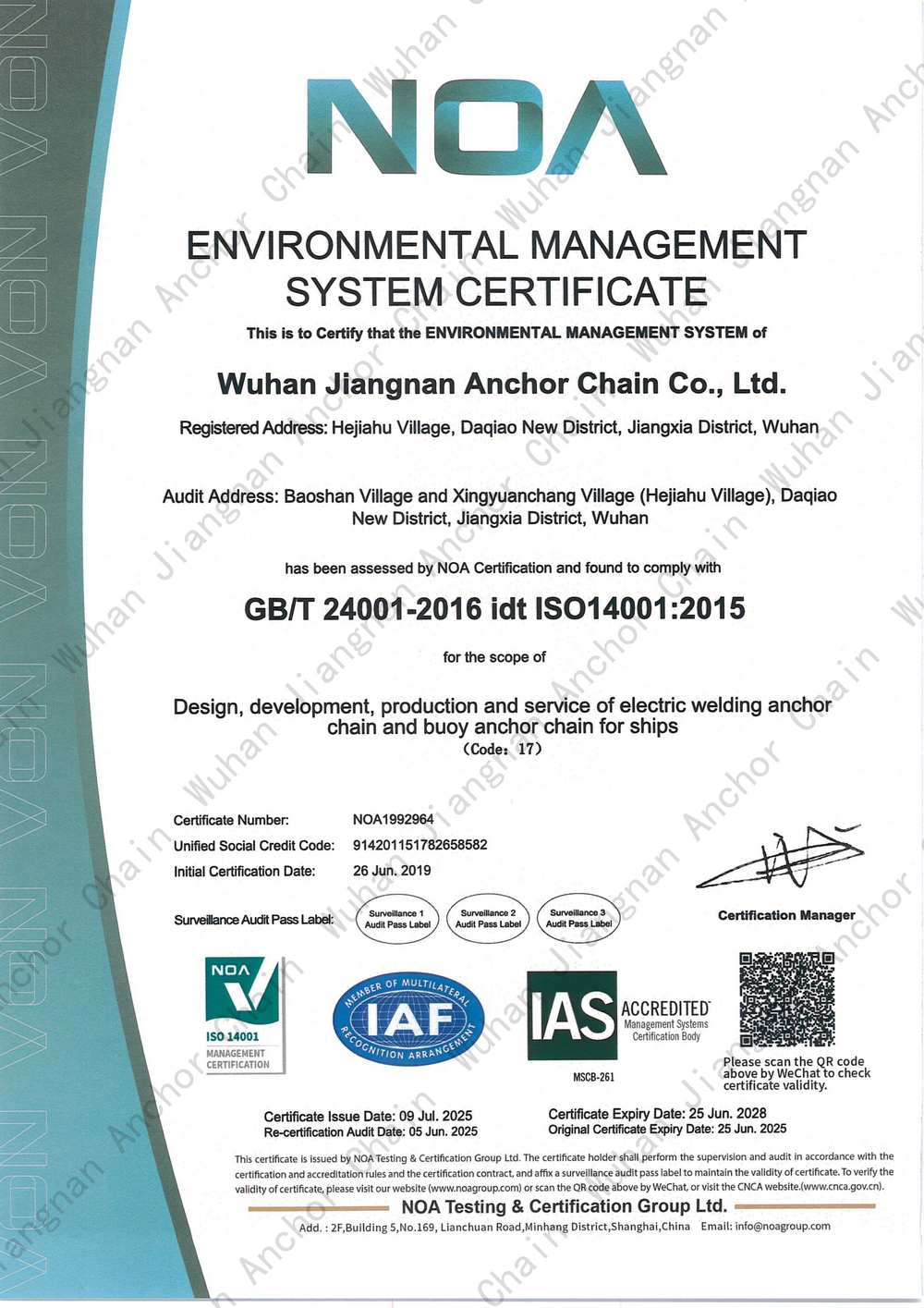

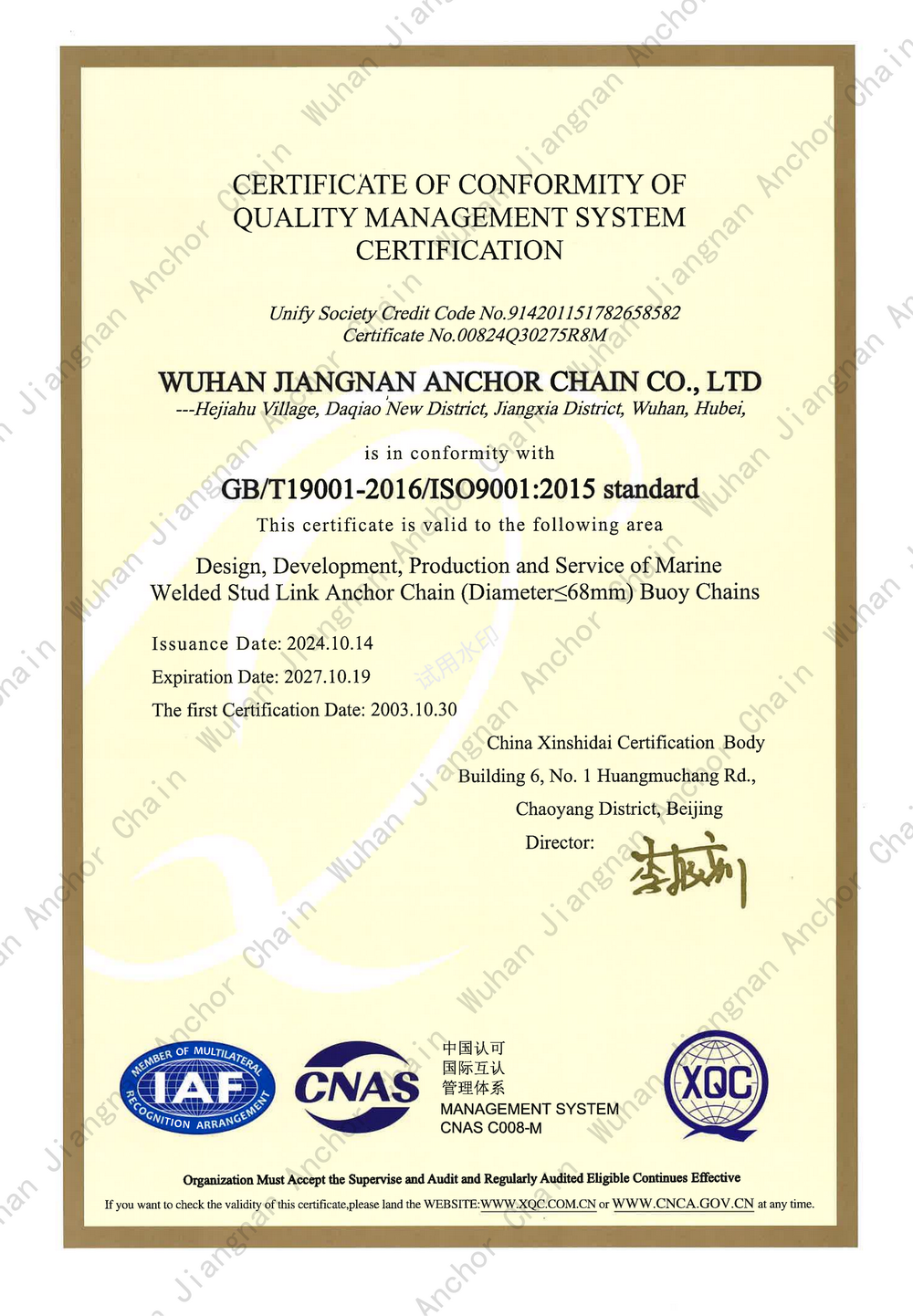

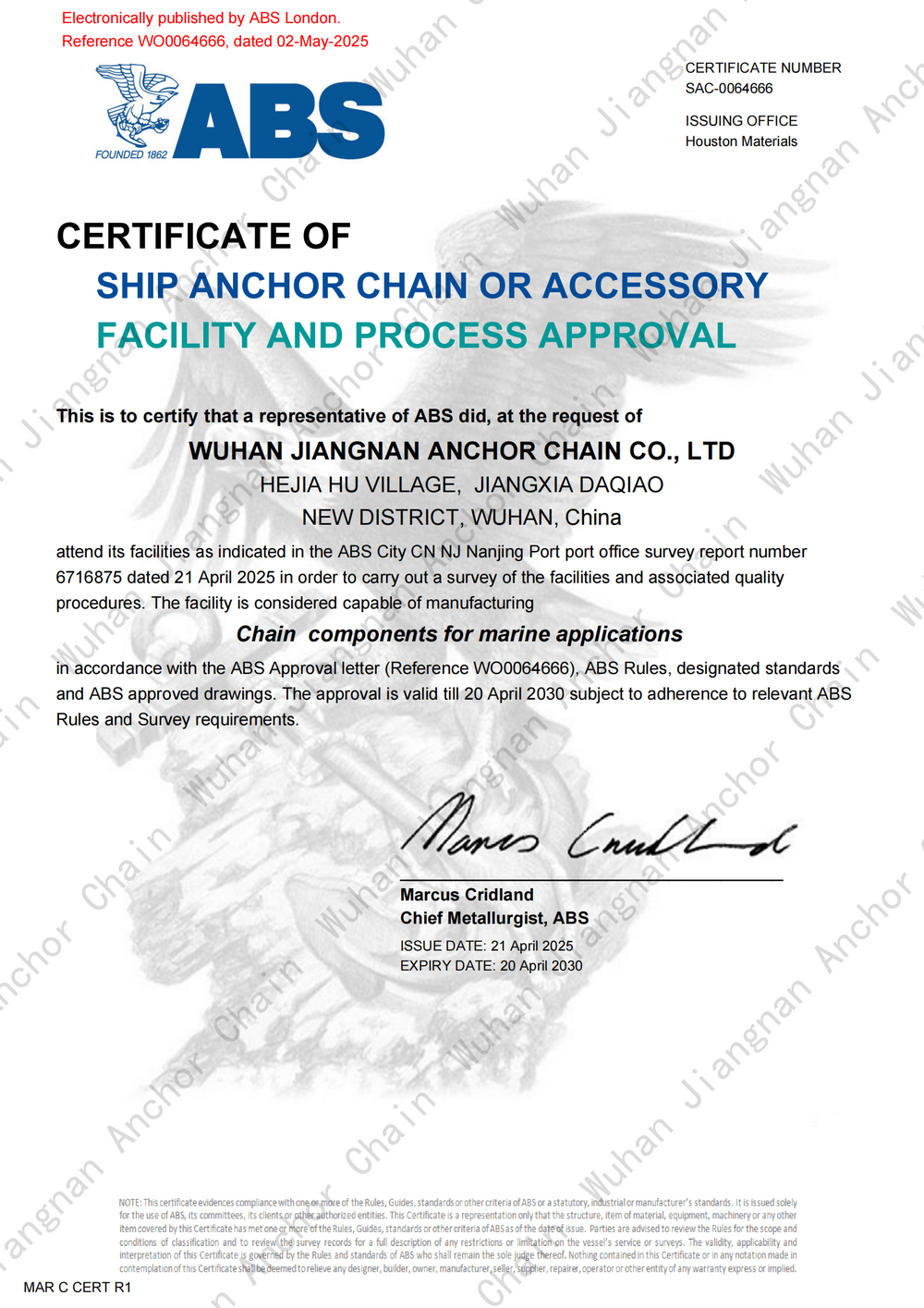

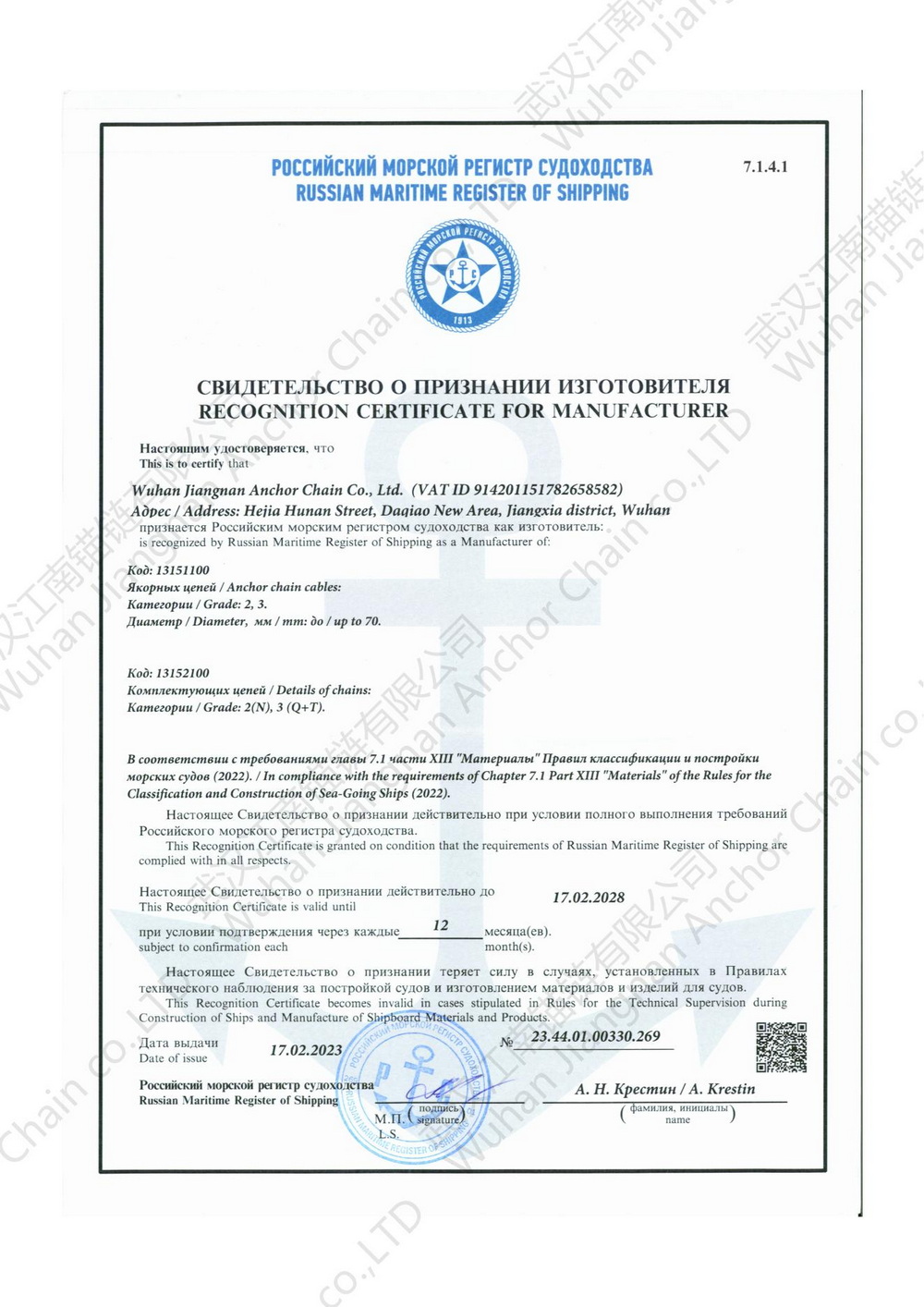

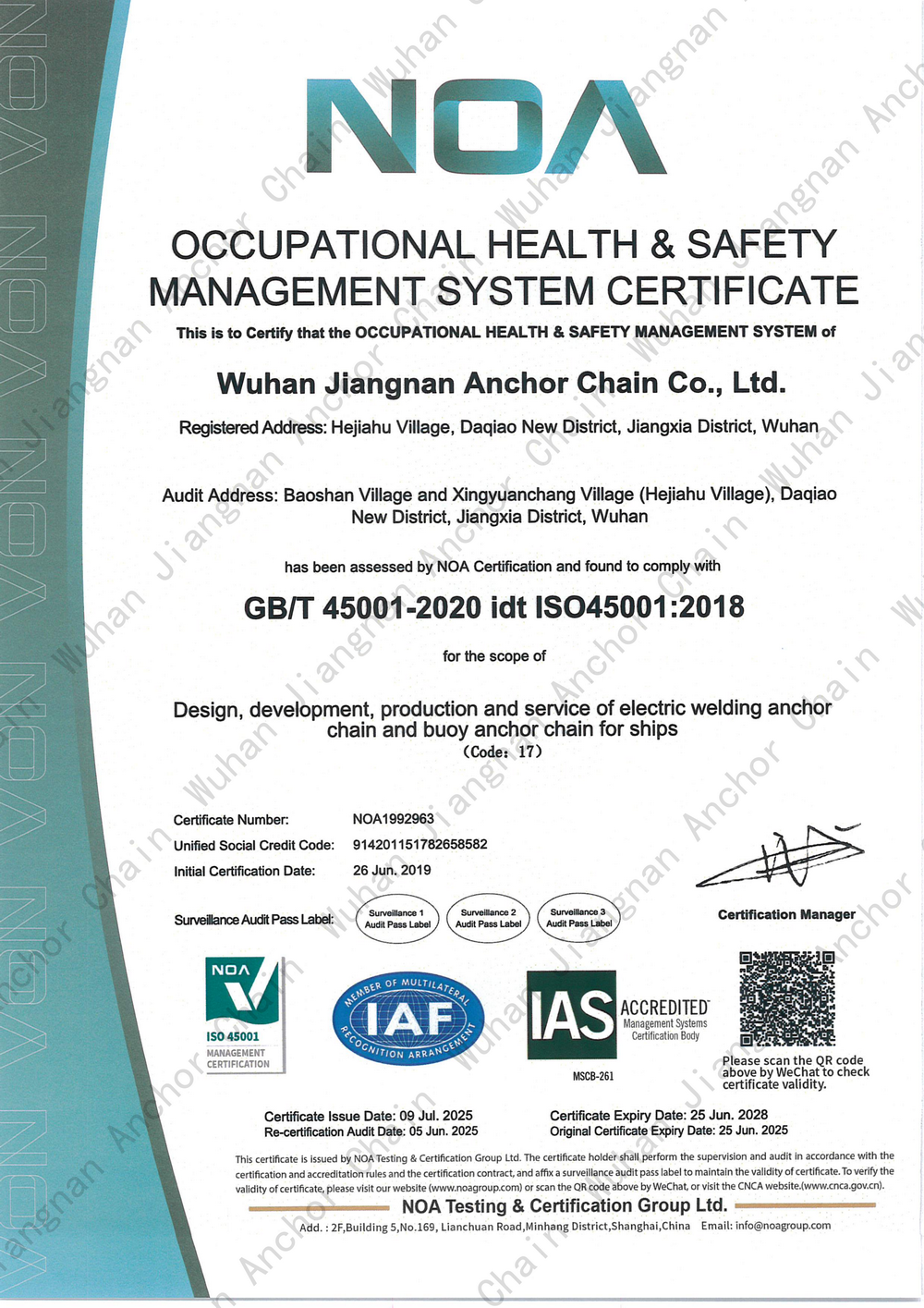

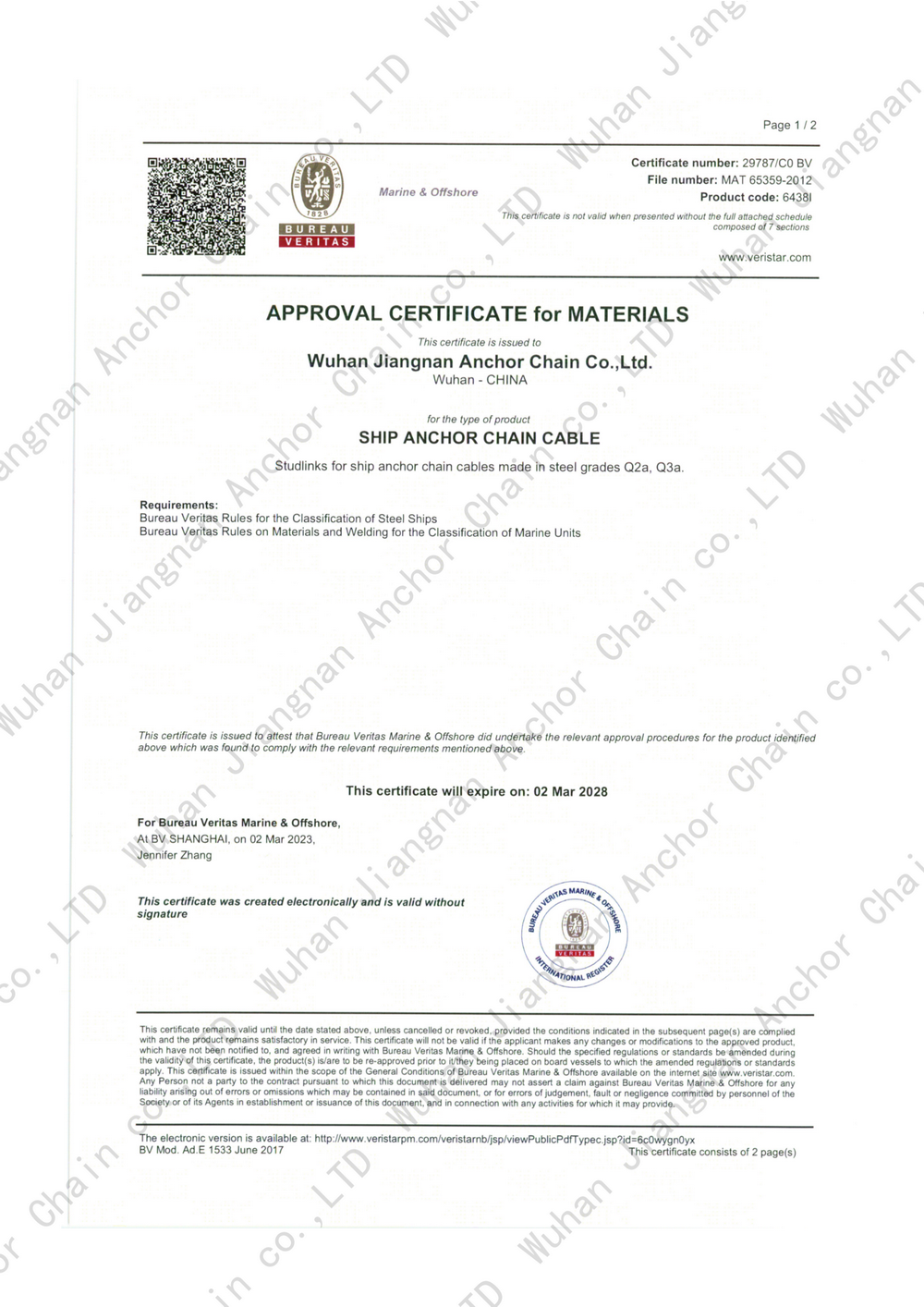

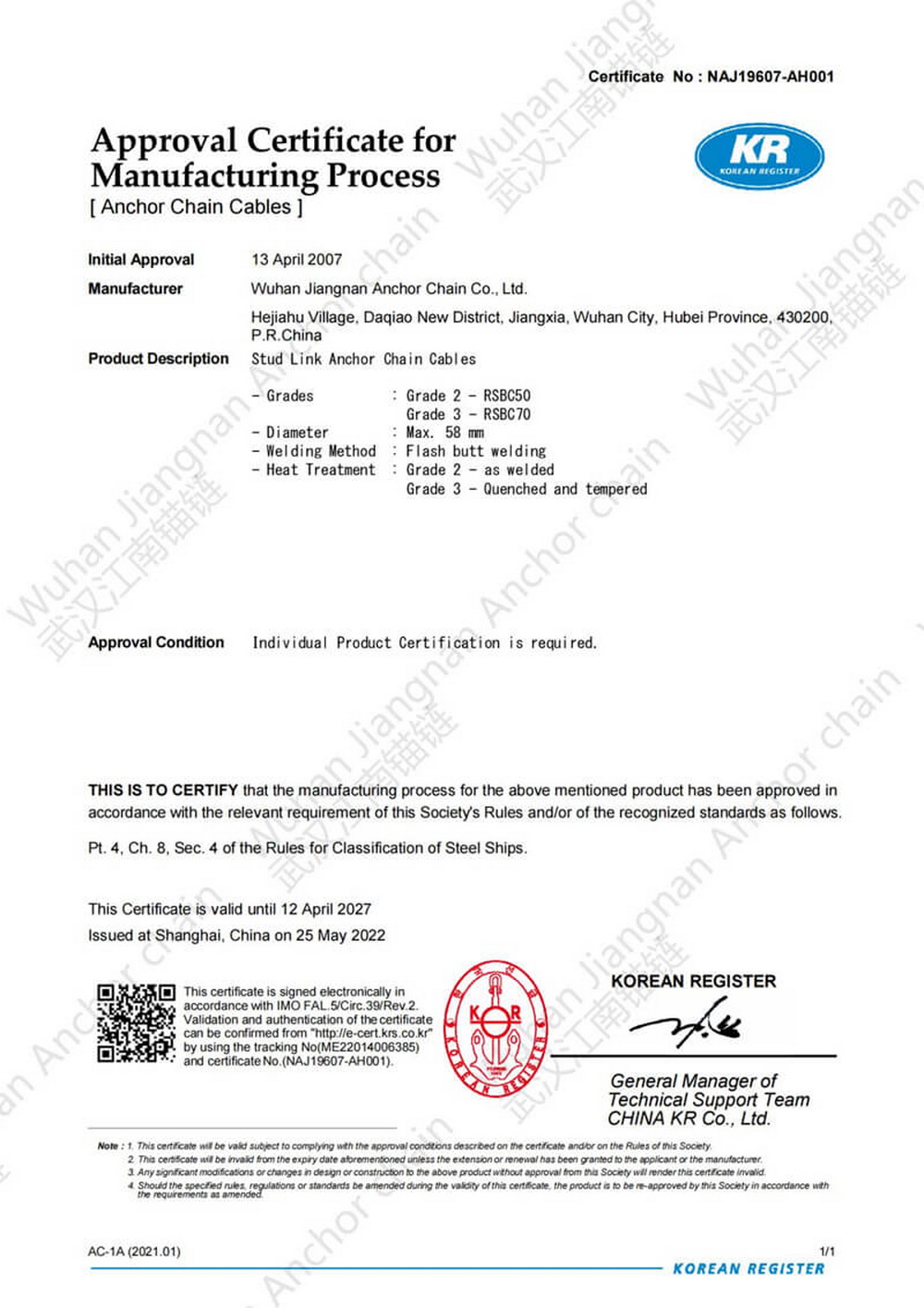

Certificate: BV, DNV, KR, CCS, RS


certificate

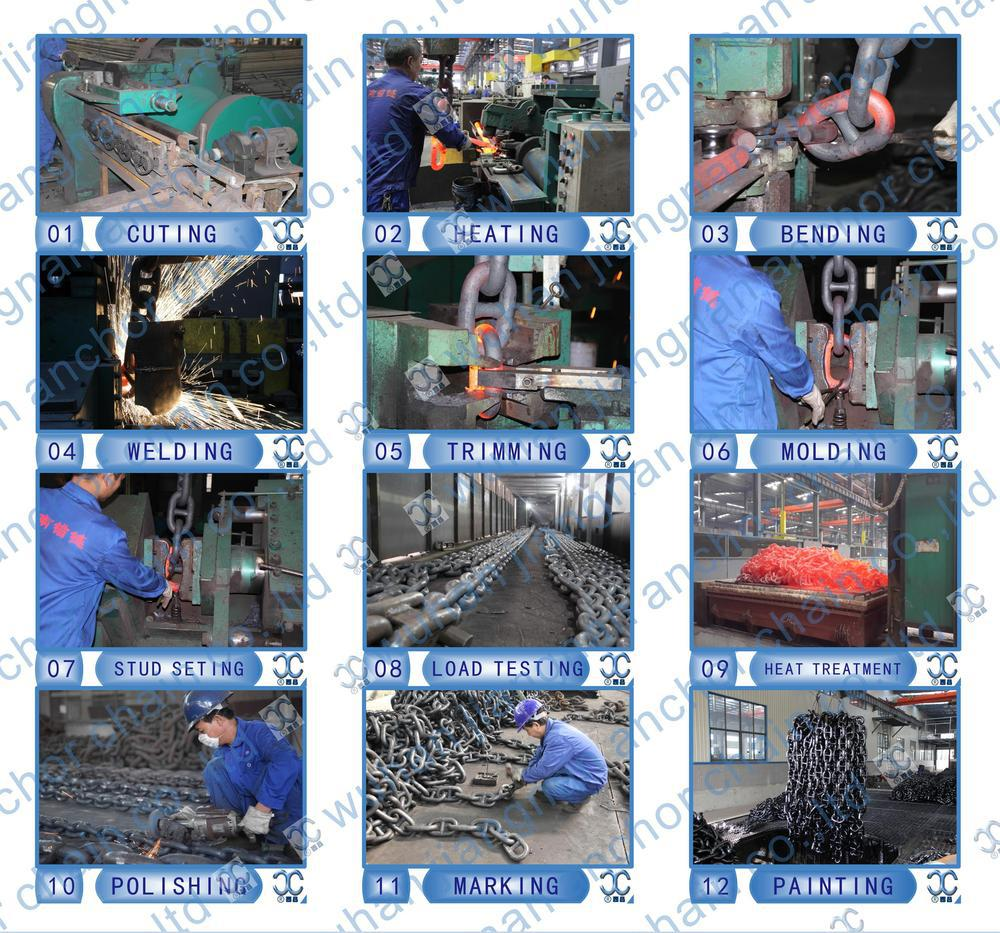

manufacturingdelivery


Application

The length of anchor chain for boats usually is 27.5m a length. A complete anchor chain consists of a number of anchor chain links connected to each other to form a certain length of anchor chain, that means anchor chain 27.5m length, and then a number of anchor chain 27.5m length are connected by connecting chain links or connecting shackles to form the entire anchor chain.


Studlink chain are commonly used on boats and ships. The main reason is the strength of the Studlink chain is larger than that of the Studless link chain, the deformation is small, and it is not easy to twist when stacked. Also, in aspect of anchor chain breaking load, studlink chains are better than studless link chains if diameter the same.


The weight of the anchor chain is negligible for the ship, and the little friction will not play much role. Generally speaking, when a ship is at anchor, the anchor chain is straight, which is basically negligible for friction. If you are by the sea, you will find many small fishing boats, and their anchor chains are thick ropes.


Viewed from above the ship, the anchor chain for boats is straight, but underwater there is a section that is close to parallel to the seabed (actually attached to the seabed). The anchor provides the holding force, and then transmits it to the ship through the anchor chain to resist the influence of the external load of the current, wind and waves on the positioning. The reason why a section is close to the seabed is to consider the influence of the force. Think about it, an anchor, when the anchor chain is pulled straight, it is easy to walk the anchor. And there is a section close to the bottom of the sea, which can provide a margin within a certain range.


Our advantage is in producing diameter of 16mm to 68mm anchor chains. Especially diameter 19mm anchor chain. We always keep large stock of 19mm anchor chains.




FAQ

Q1: What is Boat Anchor Chain Grade 2?

A: Boat Anchor Chain Grade 2 is a specific type of anchor chain primarily used in boat and marine applications. "Grade 2" refers to the quality grade of the anchor chain. This grade of chain is suitable for medium load conditions and has considerable strength and durability.


Q2: What types of boats is Boat Anchor Chain Grade 2 suitable for?
A: Boat Anchor Chain Grade 2 is suitable for all kinds of boats, including small and medium-sized yachts, commercial ships and other marine facilities that require anchor chains.


Q4: How to properly maintain and maintain Boat Anchor Chain Grade 2?
A: In order to maximize the service life of the anchor chain, the wear of the anchor chain should be checked regularly and the position of the chain should be changed as much as possible to evenly wear it. In addition, if there is rust on the anchor chain, you can use a steel brush to clean it and apply anti-rust paint.



Hot tags: boat anchor chain grade 2, anchor chain, anchor chain length chart, studlink chain, anchor chain for boats, anchor chain link, anchor chain tensioner, anchor chain 27.5m length, anchor chain breaking load, 19mm anchor chain, china, wholesale, cheap, manufacturers, suppliers, factory, in stock
